1. The new products led by Shenyang Machine Tool and Beiyi Machine Tool exhibited two new vertical vehicles, which represent the development direction of China's CNC vertical car transformation and upgrading, namely: high speed, high precision, compounding and high efficiency. It is characterized by processing needs in the industrial field for the future development of countries such as aerospace.

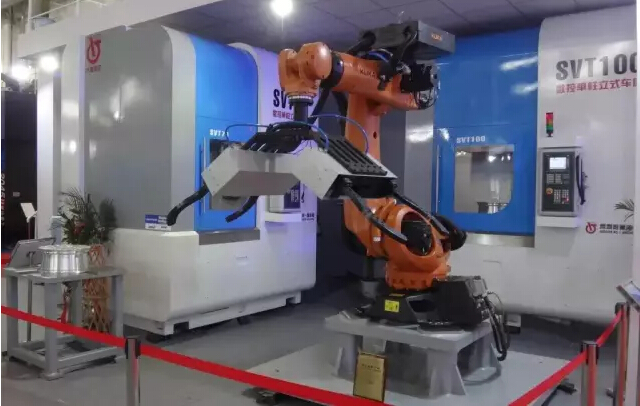

2. The application of robots on CNC vertical lathes is more and more, such as: Shenyang VertiTurn 250200DWMY vertical turning and milling machining center uses robots to automatically change the tool according to the instructions. The CNC uses the industrial robot to make two high-precision SVT70 and SVT100. The CNC vertical car constitutes the automatic processing line of the wheel hub, and can be equipped with professional wheel hub fixtures and testing equipment according to user requirements, ensuring product quality while ensuring efficient product processing.
2. The number of exhibitors and functional parts exhibiting abroad has increased significantly. CYTEC, Iberg, RAMBAUDI, KESSLER, Mandeli, OMG, VMS, Gongyang, Horma, Starrag droop rein, Taiwan GF, etc. all exhibited milling heads, some of which exhibited high levels of milling heads, such as: Mandeli mechanical pendulum The angle motor power of the angle milling head is 46kW, the maximum torque is 1259N•m, the maximum speed is 6000r/min, and the A-axis positioning accuracy is 6′′. Among the domestic machine tool manufacturers, the Beiyi machine tool displays the “plug-in†mechanical spindle swing angle milling head. The maximum power is 40kW, the maximum torque is 2kN•m, and the maximum speed is 3000r/min, which is the leading level. At the exhibition, we also see the main drive and feed drive gearbox for the vertical car, such as: DESCH planetary gearbox, LICAT zero backlash gearbox, etc. These exhibits are very close to the actual needs of the transformation and upgrading of China's machine tool industry. For the same reason, exhibitors, sensors and robot exhibitors have also increased.
3. Facing the huge market demand brought about by transformation and upgrading, foreign CNC system manufacturers have accelerated the pace of the launch of new CNC systems. For example, HEIDENHAIN launched the TNC 640 next-generation CNC system, which not only inherits the advanced functions of iTNC 530 such as high-speed and high-precision, five-axis linkage and intelligent machining, but also has many innovative functions. It is suitable for milling and compounding machine tools and can automatically adjust CNC. The system enters the milling or turning operation mode, supports advanced dynamic prediction, and has dynamic, efficient, dynamic and high-precision functions, which can greatly improve the processing efficiency. DMG MORI has launched the CELOS application and applied it as a unified user interface to the exhibiting machine. The user can carry out continuous production planning through the computer directly connected to the machine in the preparation of the work; integrated management and documentation through the multi-touch screen View and display job orders, process and machine data. Japan's MAZAK has introduced Smooth Technology and applied it to its seventh-generation CNC Mazatrol SmoothX. Shenyang Machine Tool put forward the concept of “smart manufacturing†and “I5 intelligent CNC systemâ€, which is making its machine tool products accelerate toward intelligence.
These new changes at CIMT2015 reflect the new requirements for China's industrial transformation and upgrading of CNC vertical car products. The traditional demand has become saturated. The future development direction of CNC vertical car is to meet the needs of the development of aerospace, rail transit and other fields, and to develop in the direction of high speed, high precision, high efficiency, intelligence, and environmental protection. Among them, intelligent, green and environmental protection is the support for high speed, high precision and high efficiency; how to carry out high speed and high efficiency processing under the given precision requirements requires intelligent adaptive technology; long time continuous processing and environmental temperature change, The precision stability of the machine tool puts forward higher requirements; the transmission parts of the machine tool (such as bearings, gears, lubrication, seals, etc.) are prone to failure under high-speed working conditions, and the reliability requirements are improved. The machine tool is required to have perfect intelligent fault monitoring and diagnosis. Features. High-efficiency processing of aluminum alloys, high-temperature alloys and other parts requires a large amount of coolant, which will affect the environment and people, and puts high demands on environmental protection. The efficient processing of wheel parts and wheelsets for rail transit requires fast and reliable intelligent workpieces. Testing; there are also requirements for energy saving, human-computer interaction experience. As the main body of technological innovation, domestic vertical car manufacturers should actively integrate into this new change and new normal, closely track the needs of users now and in the future, do a good job in user technology research, and track the technological development trends of domestic and foreign counterparts. Strengthen cooperation in production, education and research, break through key core technologies, and launch high-end vertical car products that users urgently need as soon as possible, and gradually realize the transformation and upgrading of technology and products. (Wu Ming Heavy Machine Tool Group Co., Ltd. Zhao Ming)
Abstract 2. Main features of CNC vertical car exhibits 1. New products led by Shenyang Machine Tool and Beiyi Machine Tool exhibited two new vertical cars, representing the development direction of China's CNC vertical car transformation and upgrading, namely: high speed and high precision , compounding, high efficiency rate, to face aviation...
Second, the main features of CNC vertical car exhibits Qizhong CNC wheel processing automatic line
1. There are many foreign vertical car manufacturers participating in CIMT2015, in addition to the above-mentioned manufacturers exhibiting the actual car, as well as: Czech TOSHULIN, Italy Sirmu, Italy Pietro Carnaghi, Italy IMT Intermato, Swiss Starrag Group Berthiez and Dorries, France Fives Fives Group, Danobat DANOBAT in Spain, Okuma in Japan, Toshiba in Toshiba, Japan, and CKD BLANSKO-OS in the Czech Republic. It shows that they are optimistic about the huge market demand for high-end vertical car products in China's industrial transformation and upgrading, and domestic vertical car manufacturers can not meet this demand well at present, which is a difficult problem for domestic enterprises.
